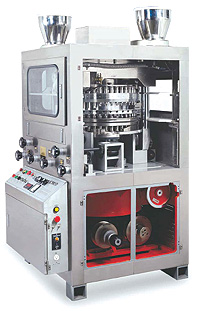

For large batch production. |
|
Allow for sngle layer tabletting with double-sided output. |
|
Accurate tabletting. |
|
Tabletting compartment separated from drive mechanism. |
|
Mechanical compresssion system. |
|
Easy maintenance & cleaning. |
|
Meets GMP. |
|
| ................................................................................................................................... |
|
| Cam design & lubrication |
| A centeral lubrication system supplies oil contiuously to lower punches, & upper punches. The ejection cam is manufacterd from special tool steel for extended life, while a double sided lifting cam is provided. |
| |
| Safety device |
| Upper punch monitoring device is available that would switch off the machine in the event of punch tightness. |
| |
| Cleaning and tool changeover |
| The detachable panels can be removed easily, whicj reveal the entrte lower punch cams This allows easy removal of the lower punches. |
| |
| Machine drive is completely separated from the presss space |
| Direct totation of the truuet by the main shaft reduces the noise level. The gearbox, with a casehardened nickel steel ground worm amd bronze wormwheel, it provides maximum protection to the gears and the drive system. |
| |
| Mechanical feeder |
| The two chambers feeding system is driven from top by a variable speed motor. The unit can be easily assembled or disassembled for cleaning. |
| |
| Pre-compression and main compression |
| For successful high speed table production of difficult and direct compression material, the large diameter of pre-compression roll increase punch dwell time and allows for difficult formulations to be processed at high speed without losss of tablet quality. |
|
| ................................................................................................................................... |
| Mechanical compression system |
| The design of mechanical compression system can be ensured for longer production runs. Pressure rollers are made of special tool steel that ensures uniform pressure application, the double bearings are fitted, which minimize wearing of the rollers. |
|
|
| Upper & Lower punch seals |
The scrapers seals for the upper punches protect tablets from oil drip, while the dust seals on the lowers prevent thepunches from binding and reduce wear on the cam.
This combined with an efficient dust extraction system allows prolonged run with little downtime for cleaning. |
|
| .................................................................................................................................. |
Specifications:
MODEL |
JC-DH-230 |
JC-DH-
29DB |
JC-DH-
29B |
JC-DH-35BB |
| Type of tooling |
IPT"D"
EU"D" |
IPT"D"
EU"D" |
IPT"D"
EU"B" |
IPT"BB"
EU"BB" |
| Number of station |
31 |
39 |
39 |
47 |
| Maximum Table diameter |
25.4mm
1" |
19mm(caplet)
(3/4") |
16mm
(5/8") |
13mm
(33/64") |
Production capactity
(ablets/hours) * |
52000-200000 |
65000-260000 |
78000-312000 |
Revolution of turret / Min
(60 cyc)* |
14-56 RPM |
| Depth of fill adjustable to |
19mm (3/4") |
17mm (43/64") |
| Maximum operating pressure |
10,000kgs (22,000lb) |
6,000kgs (13,200lb) |
| Maximum pre-pressure |
3,000kgs (6,600lb) |
3,000kgs (6,600lb) |
| Diameter of die |
38.1mm (1.5") |
30.16mm (1.1875") |
24mm(0.945") |
| Height of die |
23.81mm (0.9375") |
22.22mm (0.945") |
| Nominal diameter of punch body |
25.4 mm (1") |
19 mm(3/4") |
| Overall Length of upper Punch |
IPT 133.35 mm (5.25") or EU 133.6 mm |
| Overall Length of lower Punch |
IPT 133.35 mm (5.25") or EU 133.6 mm |
| Turret P.C.D |
490 mm |
| Power consumption |
5HP (3.7kw) |
| Machine dimensions |
900x1100x1750mm(H) (not including hopper) |
| Net weight |
2600 kgs (5720 Ibs) |
|
*Subjest to the characteristics of the power.
*The manufacturer reserves the right to modifty the design, specifiaction, etc., to improve
the performance of the machine without notice. All the specifiaction shown are reference only. |
|
